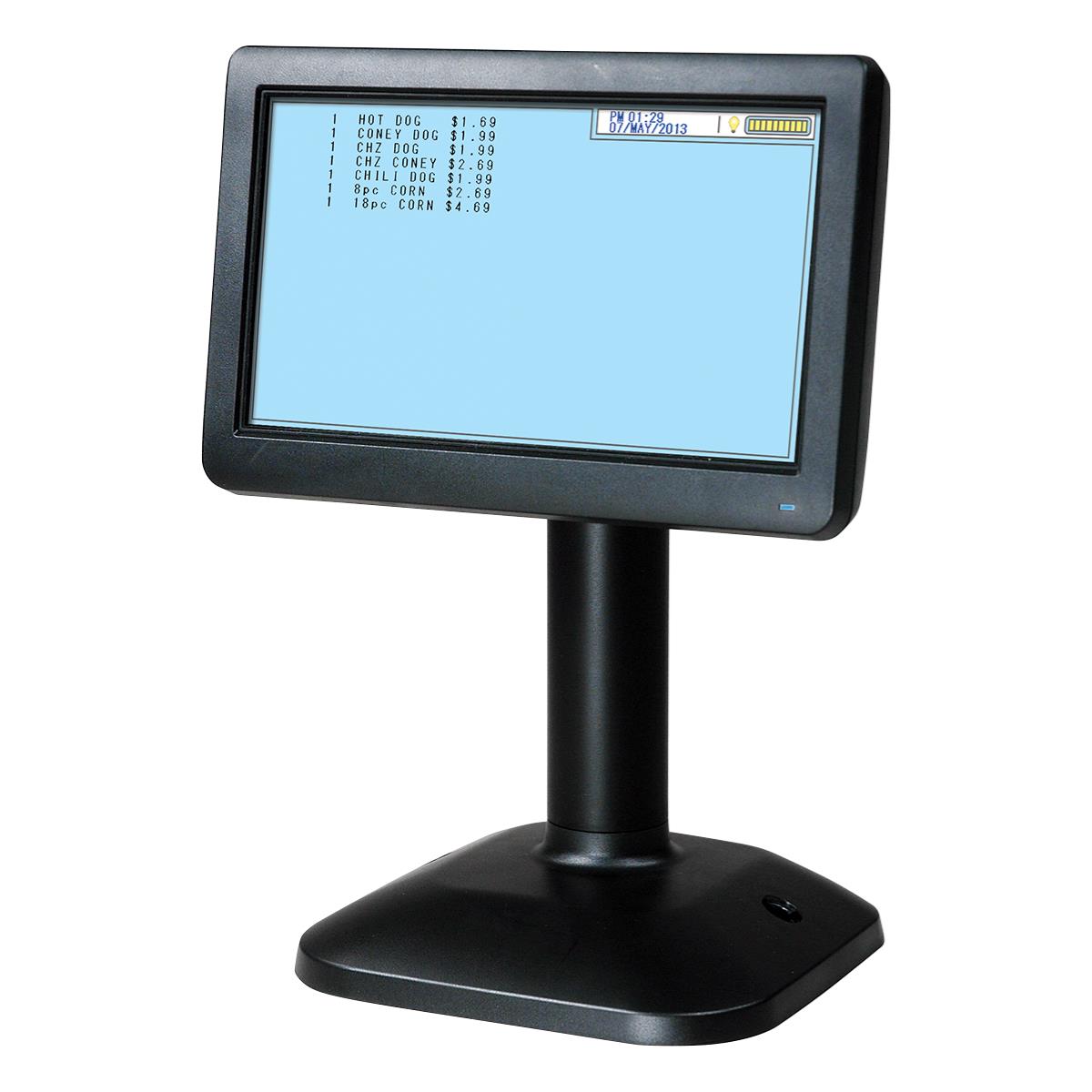

SAM4S ML700 Graphic Pole Display




Call 1-800-954-3281 for Pricing or

Product Information

The innovative new SAM4s 7" Graphic Customer Display is designed to visually promote product, promotions and specials. A slide show runs continuously on the screen above the enhanced customer display. VESA mounting is provided for custom installations.

Beginning at version 1.13 the ML700 supports a "keyword" feature, designed to simplify compatibility with other ECR/POS applications.
• Large 7" liquid crystal display

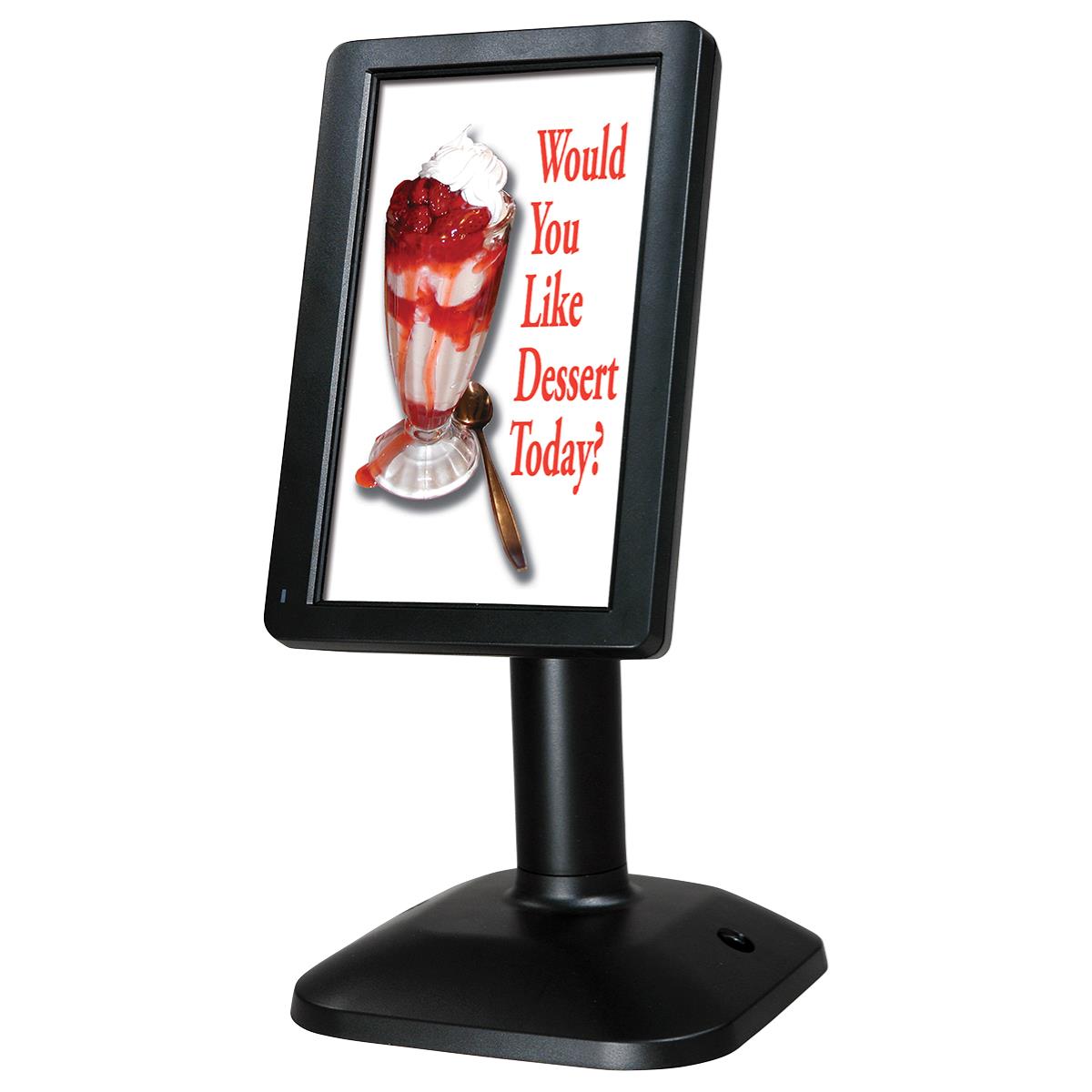

• Visually promote products and specials
• Like an order confi rmation screen, customers can view each item as it is entered or as corrections are made
• Visually displaying the entire order promotes accuracy and reduces fraud
• Use the slide show confi guration like a digital photo frame

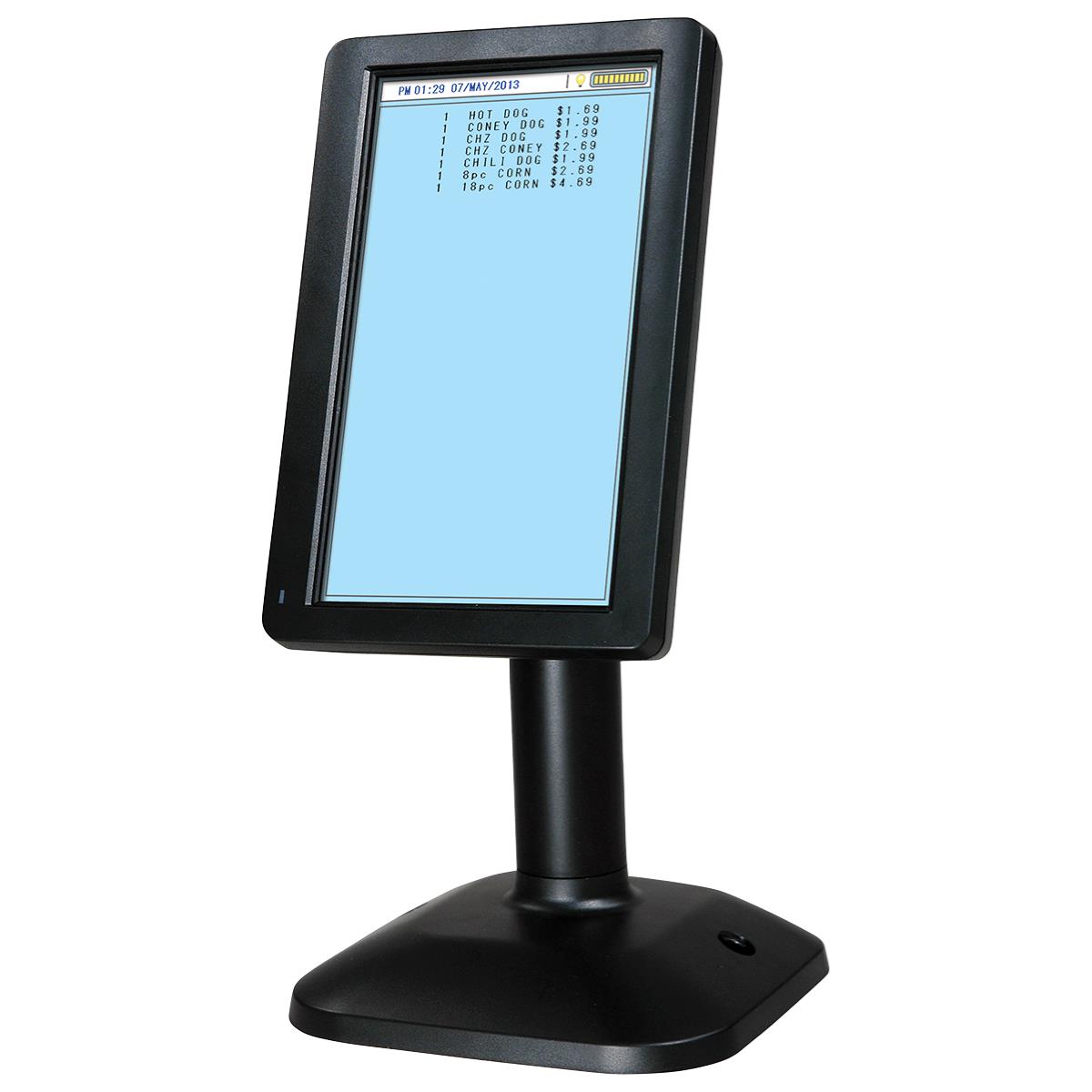

• Rotatable – choose portrait or landscape orientation

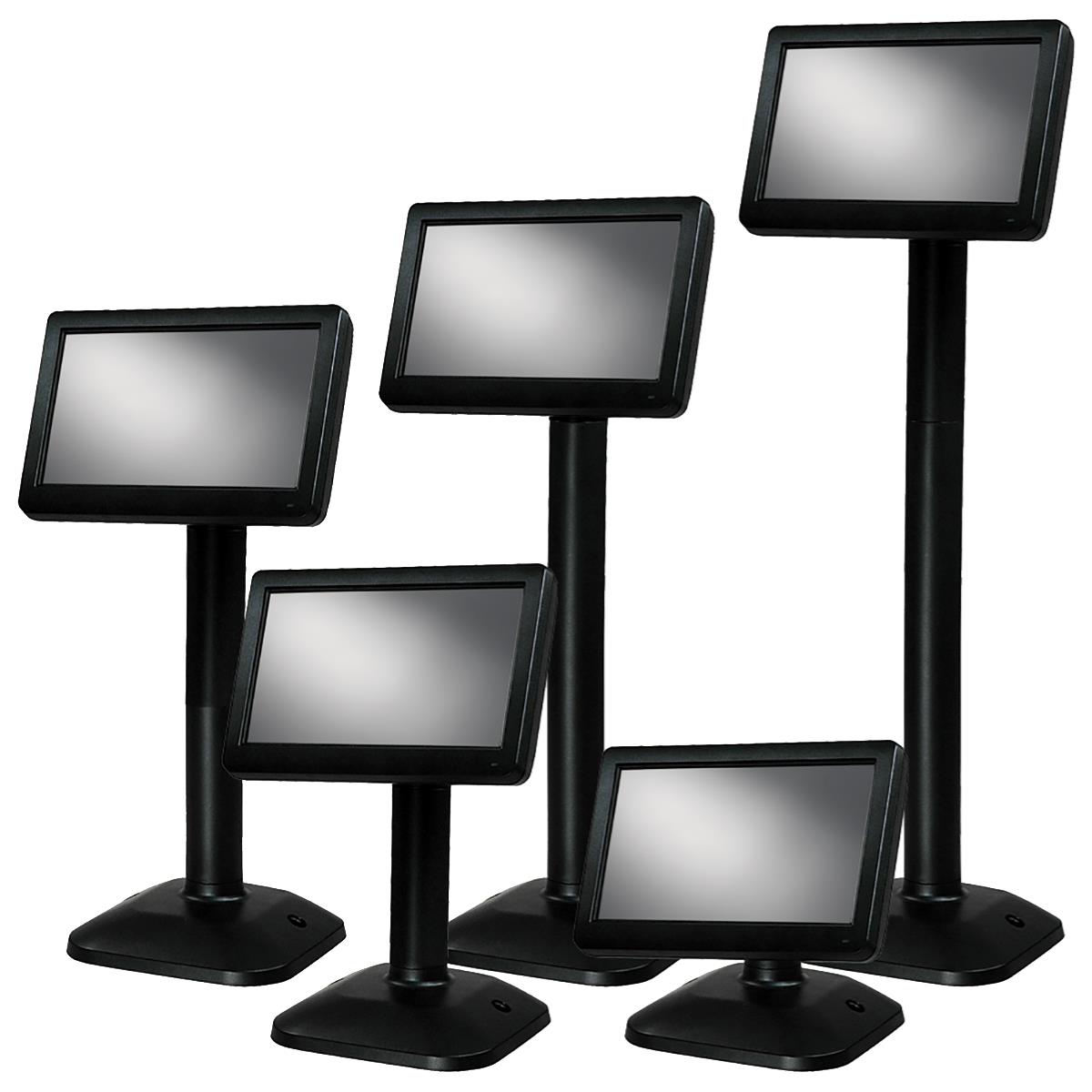

• User customizable height from 5-1/2" to 20"
• Images are extremely easy to load


Product Specification

Display - LCD Size:
              Resolution:
              Brightness:
7" TFT-LCD
800 x 480
Adjustable up to 400 cd/m^2
Interface - Standard:
                     Optional:
USB (Virtual COM) / Serial (RJ45 / DSUB-9)
Ethernet 10/100 BaseT / WiFi 802.11
NAND Flash Storage: 512 MB
Images - Format:
            Download:
JPEG / BMP / PNG / TGA
Via PC or USB Memory Drive
PC Utility: Image & Firmware Download
Driver: OPOS
Command: ESC / POS
Angles - Tilt Angle:
          Swivel Angle:
            Pivot Angle:
0 ~ 40°
350°
0 ~ 90°
Power Supply - Voltage:
                  Consumption:
7 ~ 12 Volts DC
5 Watts (Maximum)
Dimensions - Panel:
                          Base:
           Height Range:
7" W x 4-5/8"H x 1-1/2"D
5-5/8" W x 1" H x 4-7/8" D
5-1/2" ~ 20" (To Top of Display)
Weight - Product:
               Shipping:
2.21 lbs.
4 lbs.
