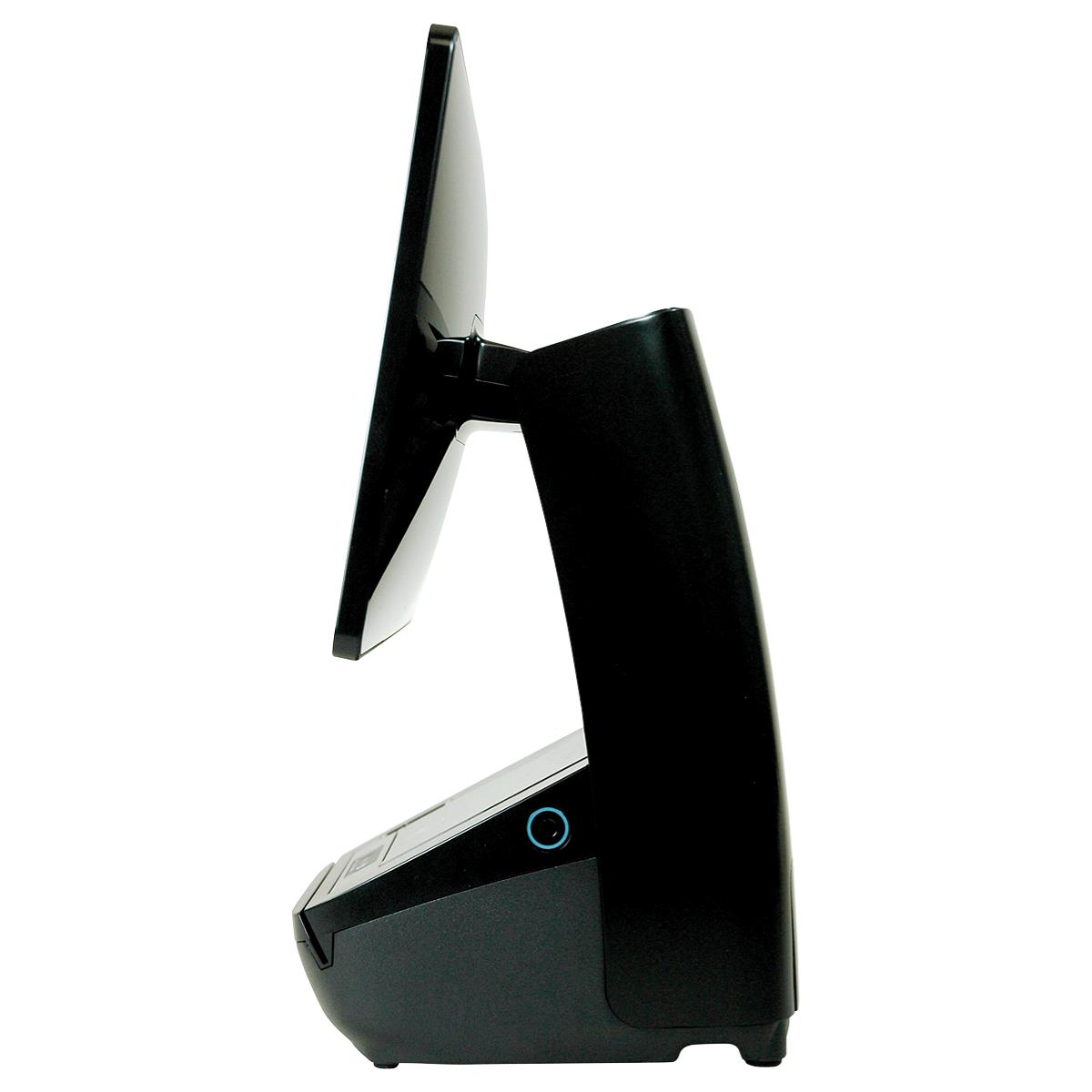

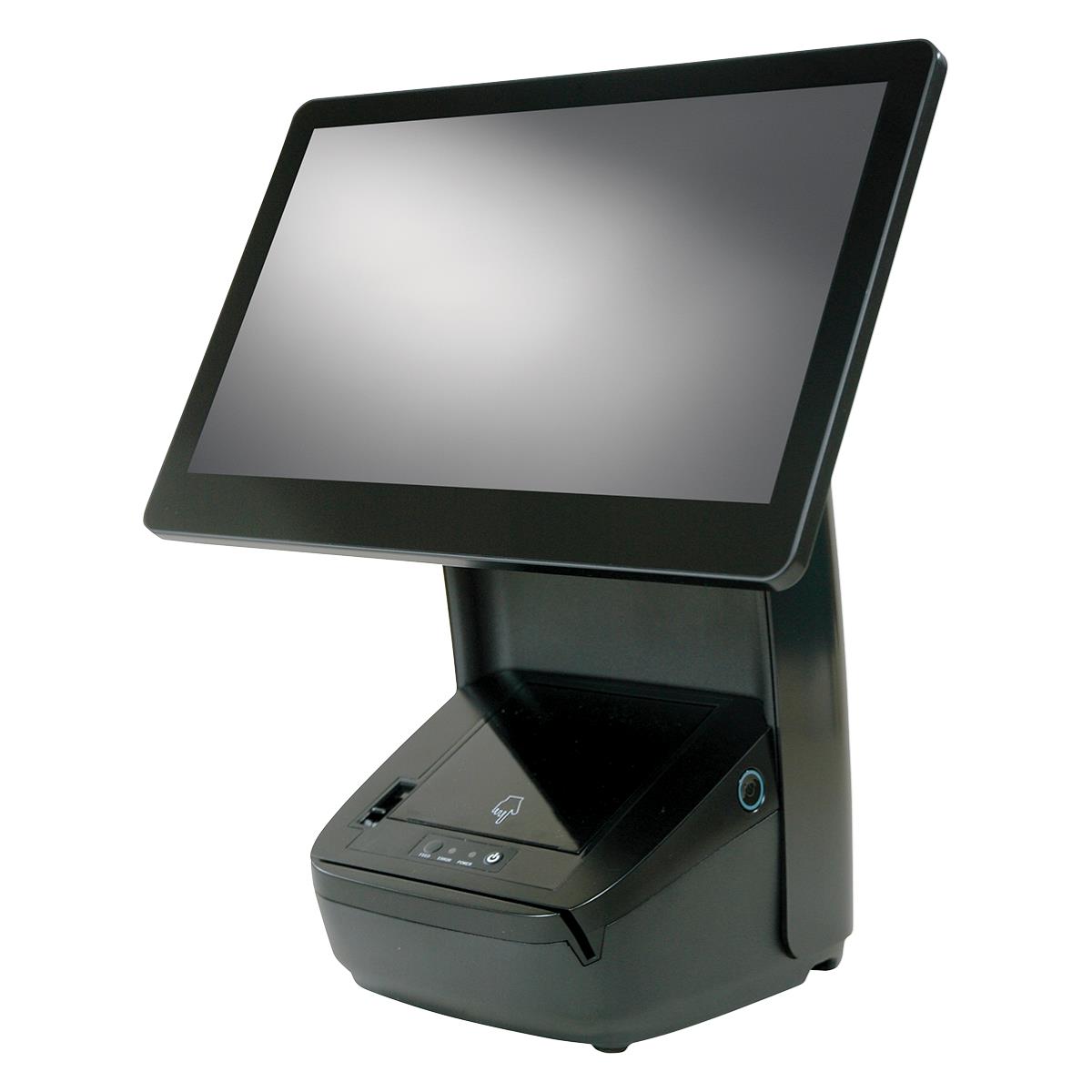

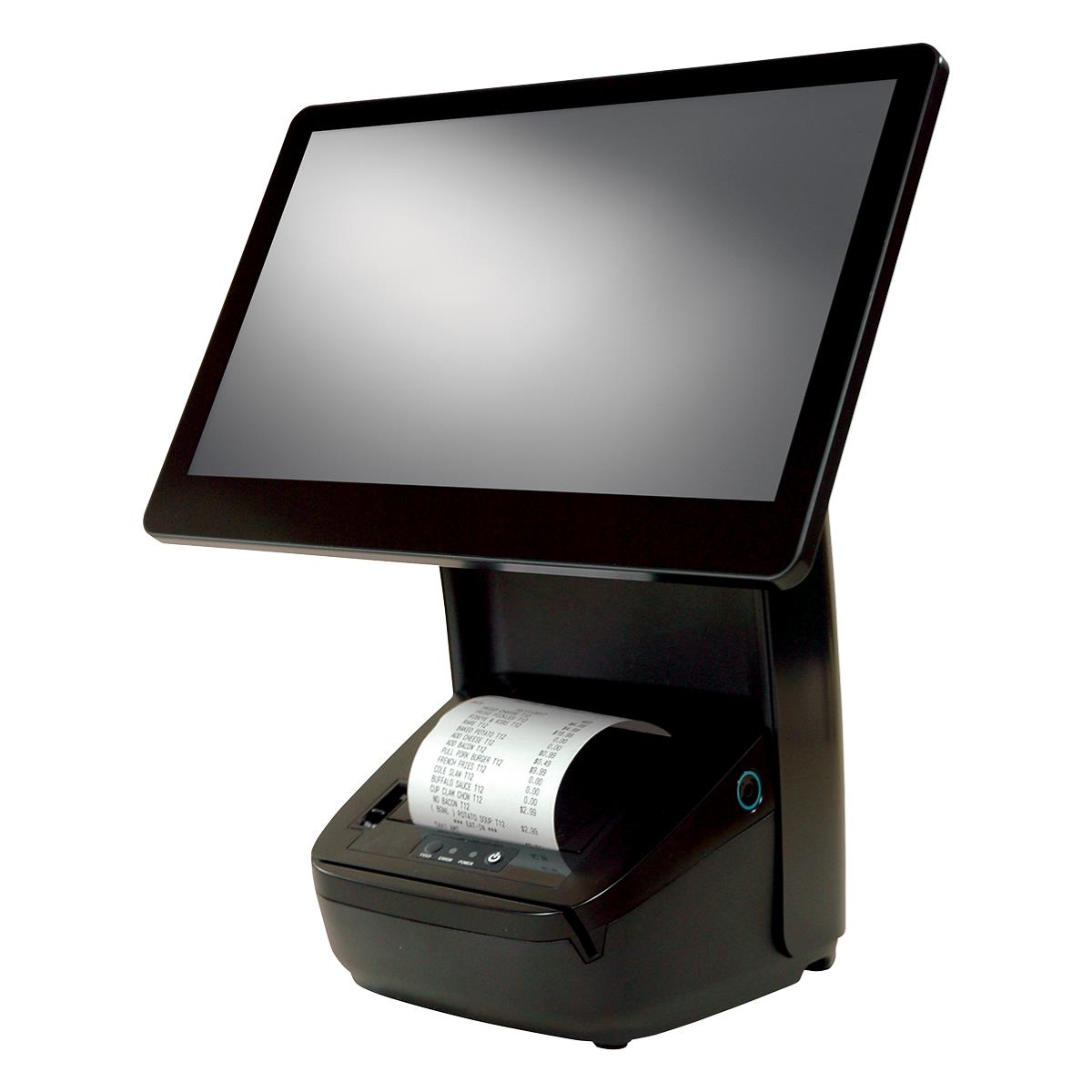

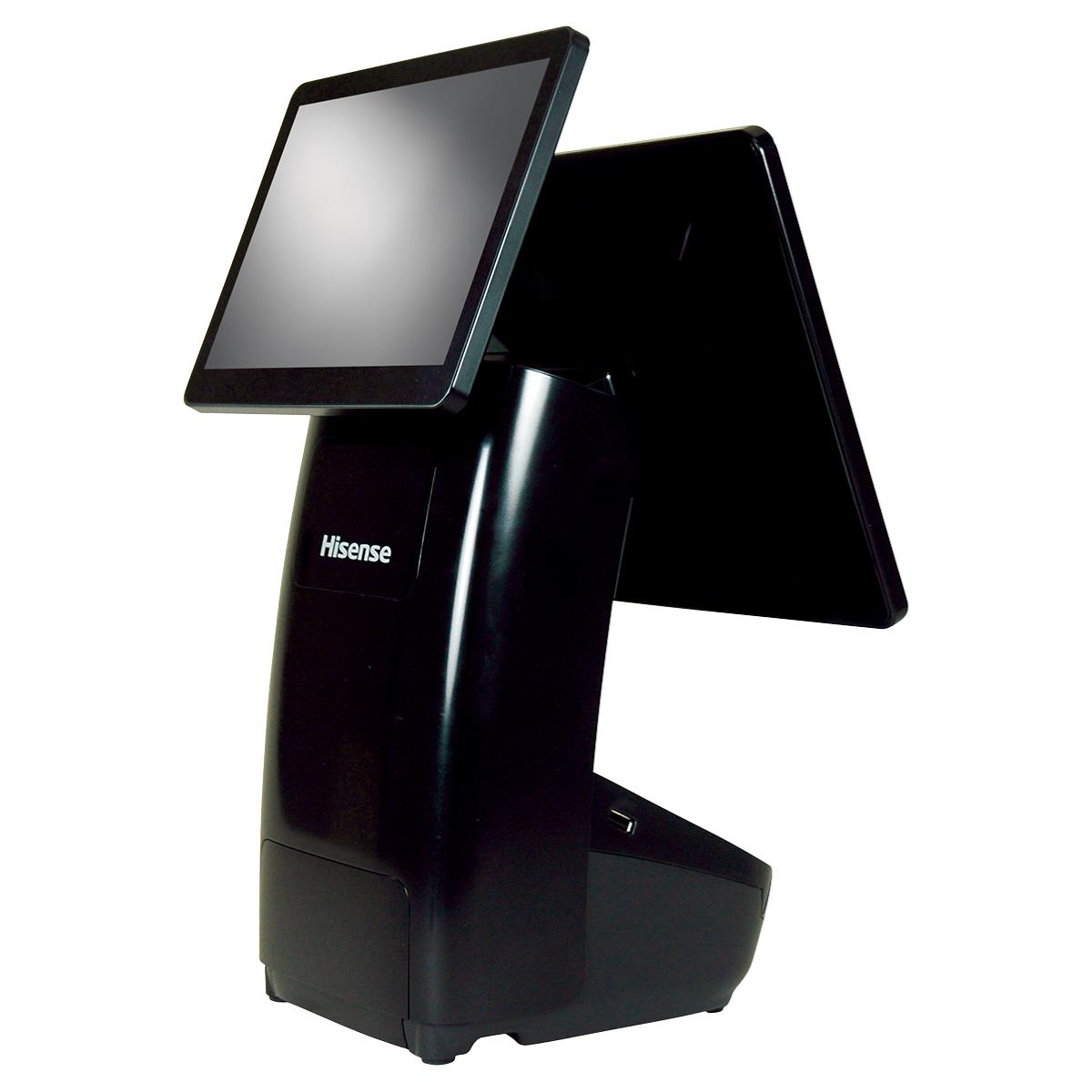

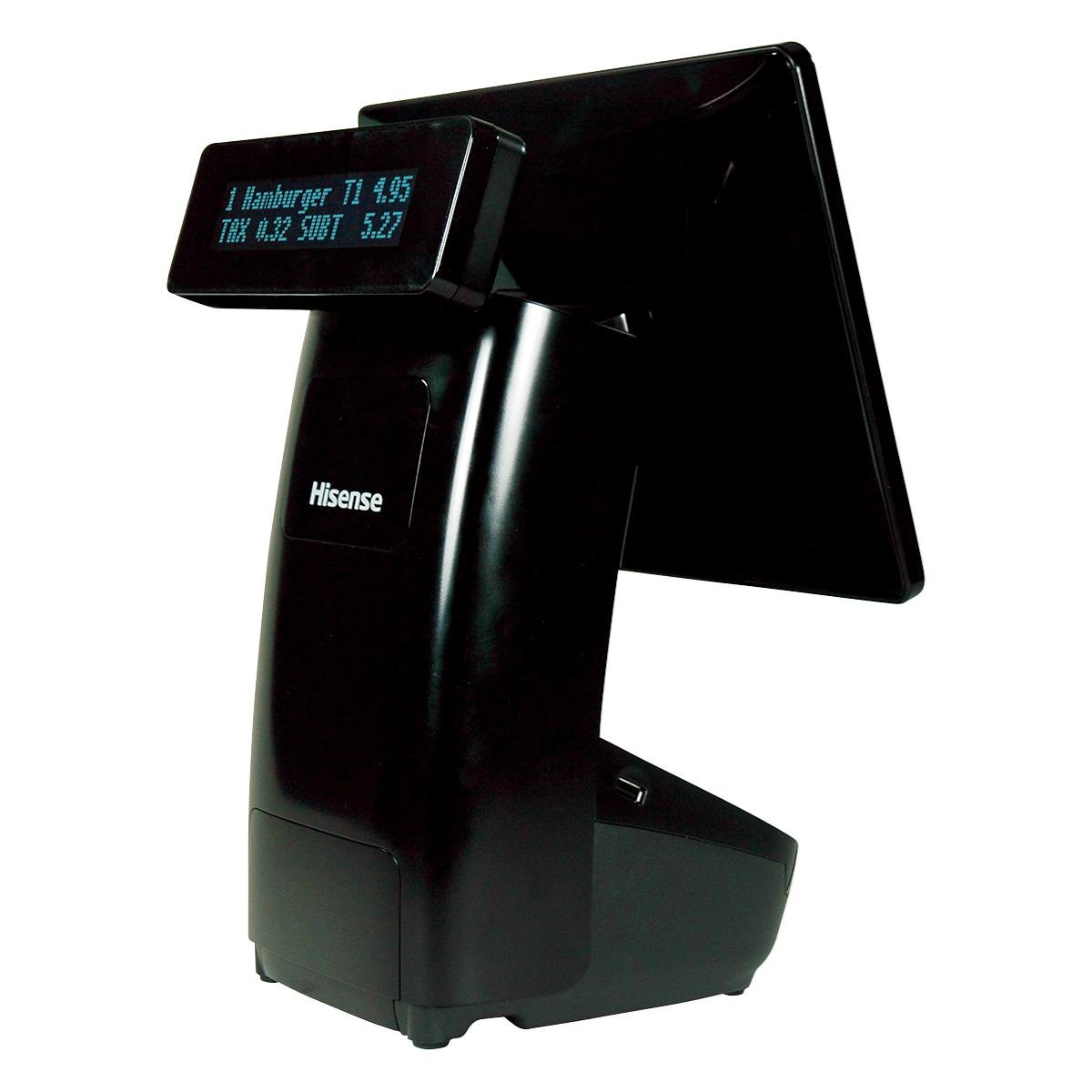

| Hisense is the world’s third largest TV manufacturer and leads the Chinese market with point of sale products. The Hisense HK718 true flat touch terminals include projected capacitive touch and a solid state drive for optimum performance and reliability in harsh retail and food service environments. Add a 58mm or 80mm integrated printer to create a space saving highly integrated terminal. |
|
• Intel Bay Trail Celeron Quad Core J1900 2.42GHz Fanless Windows Processor • Projected Capacitive Touch (PCT) • Solid State Drive for Optimum Performance and Reliability Vivid LED Backlight • 14" True-Flat Screen • Fully Sealed Cabinet • Choice of Black or White Cabinet Color • Compatible with Popular Application Software |
Product Specification |
|
|---|---|
| Processor: | Intel Bay Trail Quad Core J1900 2.41GHz |
| Cores / Threads | Quad Core / 4 Threads |
| Cache Memory: | 2MB |
| Display LCD: | True Flat 14" LCD with LED Backlighting |
| Resolution: | 1366 x 768 |
| Brightness: | 220 cd/m2 |
| Integrated Speakers: | Two Integrated 2 Watt Speakers |
| Chipset (PCH): | CPU Integrated |
| Touch Panel: | Projected Capacitive Touch |
| MCR: | Integrated USB Interface Triple Track MCR |
| Hard Drive: | 128GB 2.5" Solid State Drive |
| RAM Memory (1 Slot): | 4GB SODIMM DDR3 (1333MHz) Expandable To 8GB |
| Video Memory: | Shared System Memory Up To 256MB |
| Tilt Adjustment: | 0° ~ 90° (Vertical) |
| Serial Ports |
External: COM1, COM2, COM5 = DB9 |
| Parallel Port: | Not Applicable |
| USB Ports | Port Panel: 4 V2.0 & 1 V3.0 Side: 1 V2.0 |
| Cash Drawer Port: | RJ11 (12V / 24V) (Maximum 1 Drawer - Supports Open/Close) |
| LAN Port: | RJ45 10/100/1000 Base-T (Giga Lan) RealTek RTL8111F |
| VGA Port: | Pin Port (Internal - on Main Board) |
| Audio Port: | One |
| Mic Port: | Not Applicable |
| Power Supply: | 24V/3.75A External Power Adaptor 100-240V 50-60Hz |
| Current / Power Usage: | 0.9A / 21.6W Single Display; 3.04A / 72.96W Single Display+Printer |
| Operating Temperature: | 41° F to 104° F (5° C to 40° C) |
| Storage Temperature | -4° F to 140° F (-20° C to 60° C) |
| Compatible O/S: | POSReady 7 / Windows 7 Professional / Windows 10 Pro / Windows 10 IoT Enterprise LTSB |
| Dimen. / Weight - Base: |
Overall: 13-1/2"W x 15-1/2"H x 8"D / 11 lbs. |
| Safety and EMI: | FCC, Class-B / CE, Class-B / RCM / RoHS |
